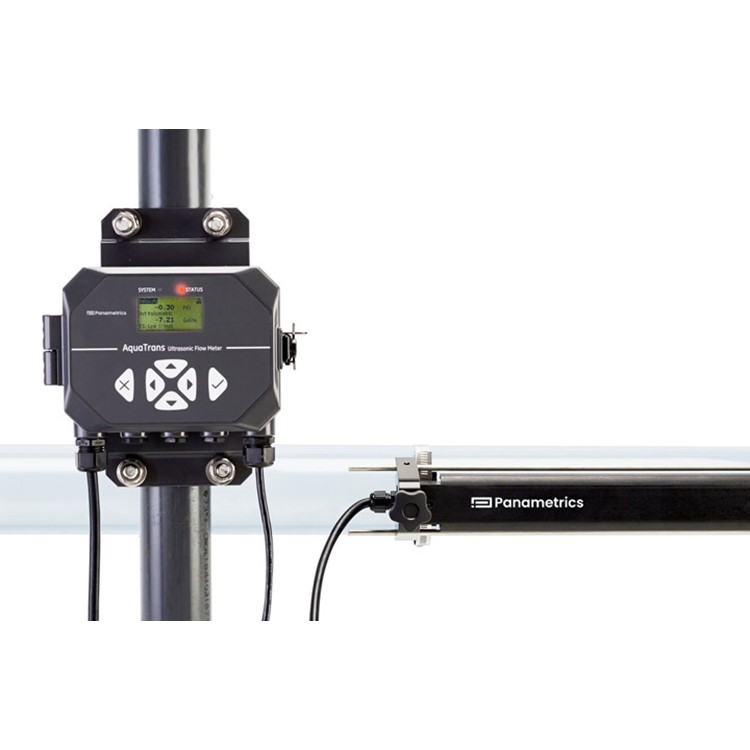

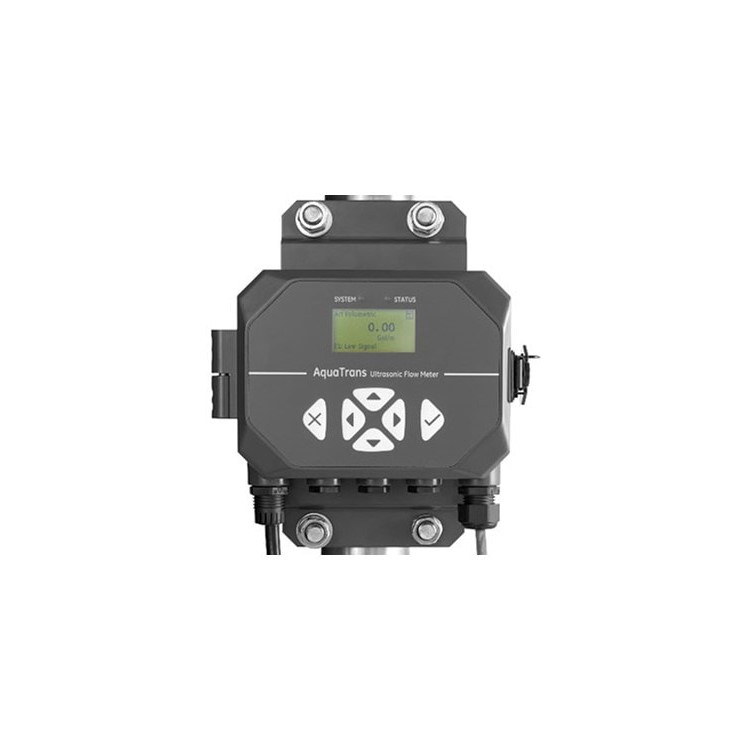

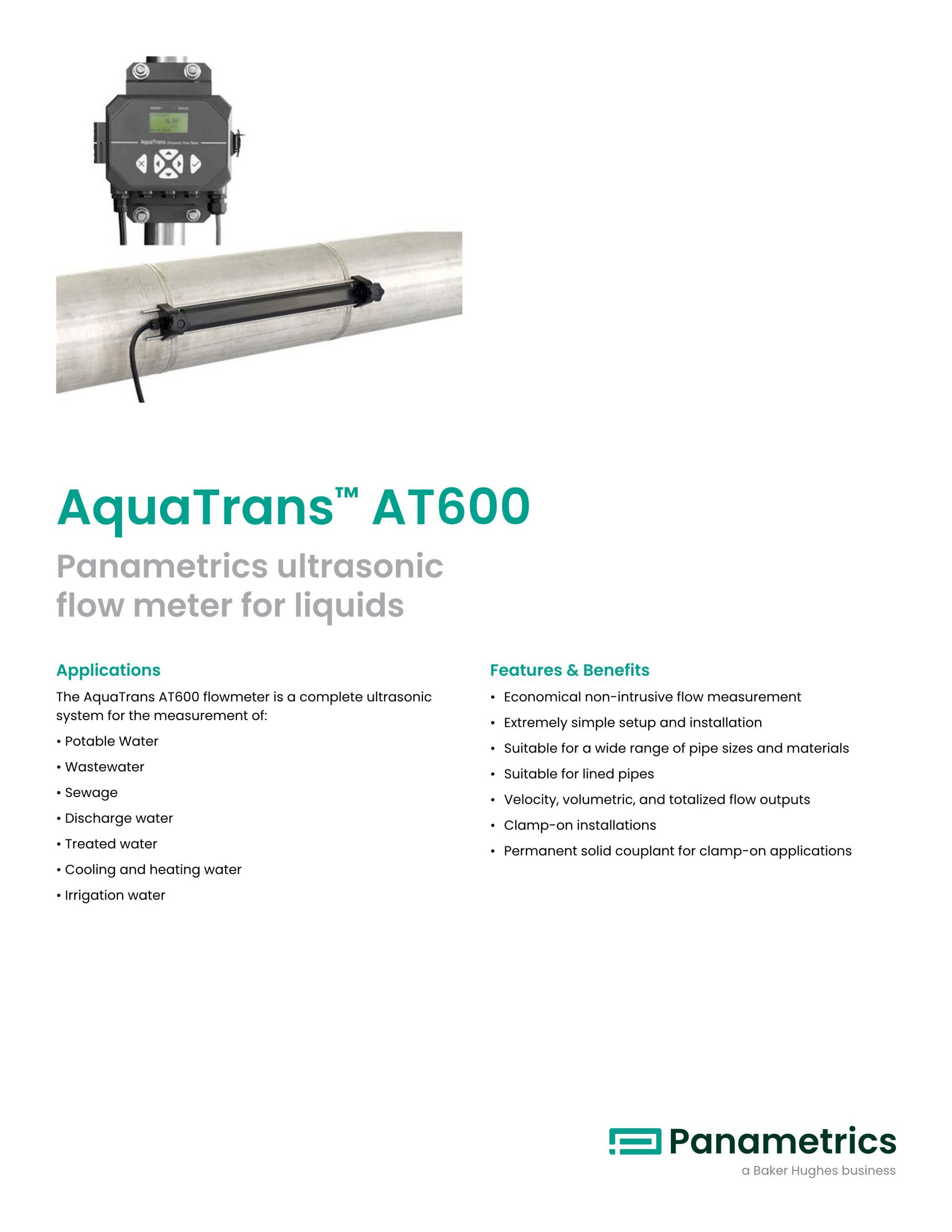

AquaTrans_Ultrasonic flow meter AT600
- Economical non-intrusive flow measurement
- Extremely simple set-up and installation
- Suitable for a wide range of pipe sizes and materials
- Suitable for lined pipes
- Velocity, volumetric and totalised flow outputs
- Clamp-on installations
- Permanent solid couplant for clamp-on applications
상세규격
초음파 액체 유량계
AT600 ultrasonic flow meter for liquids

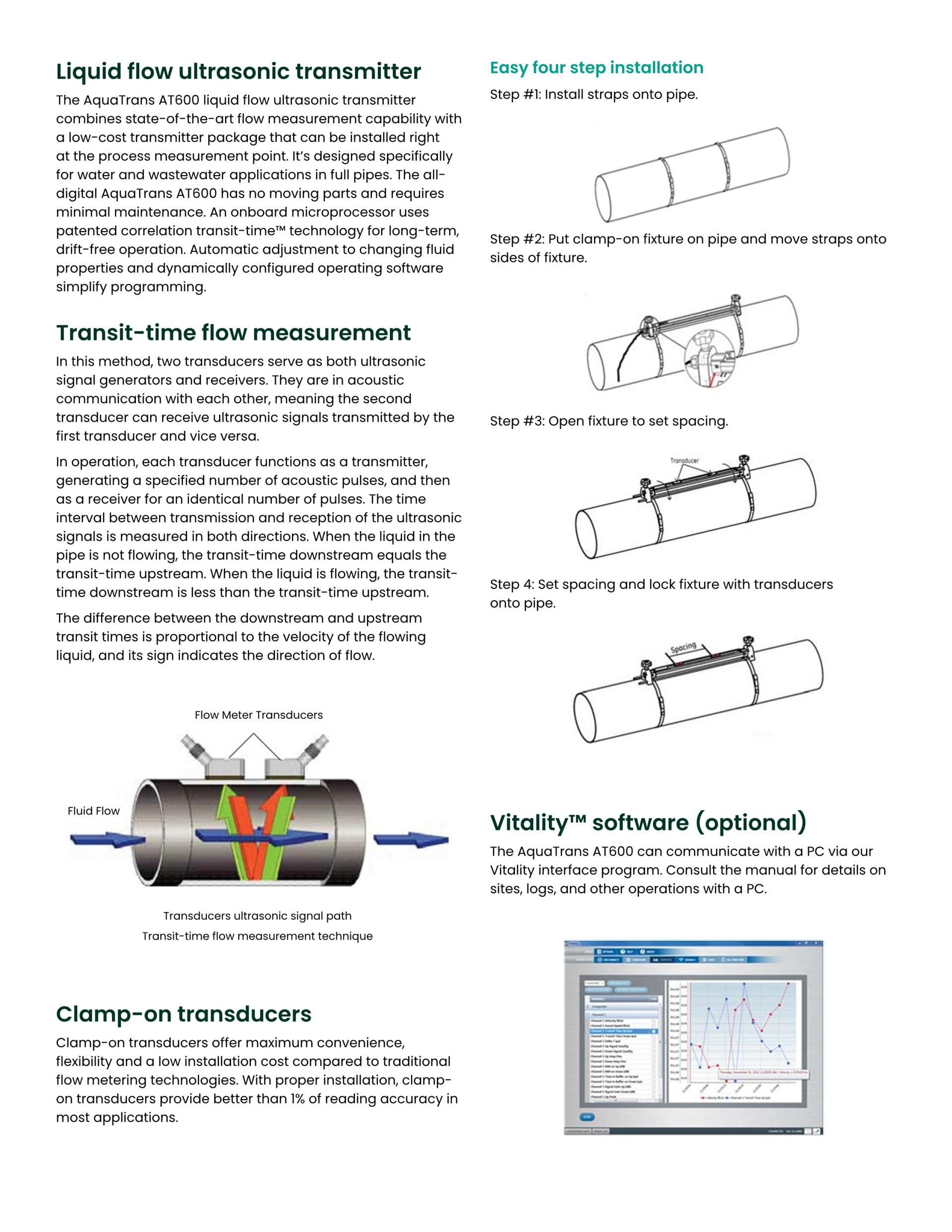

The Panametrics AquaTrans AT600 is a liquid clamp-on flow meter designed to be accurate, durable, and cost-effective. The AT600 combines state-of-the-art flow measurement capability with a low-cost transmitter package that can be installed right at the process measurement point. The AT600 has no moving parts and requires minimal maintenance.

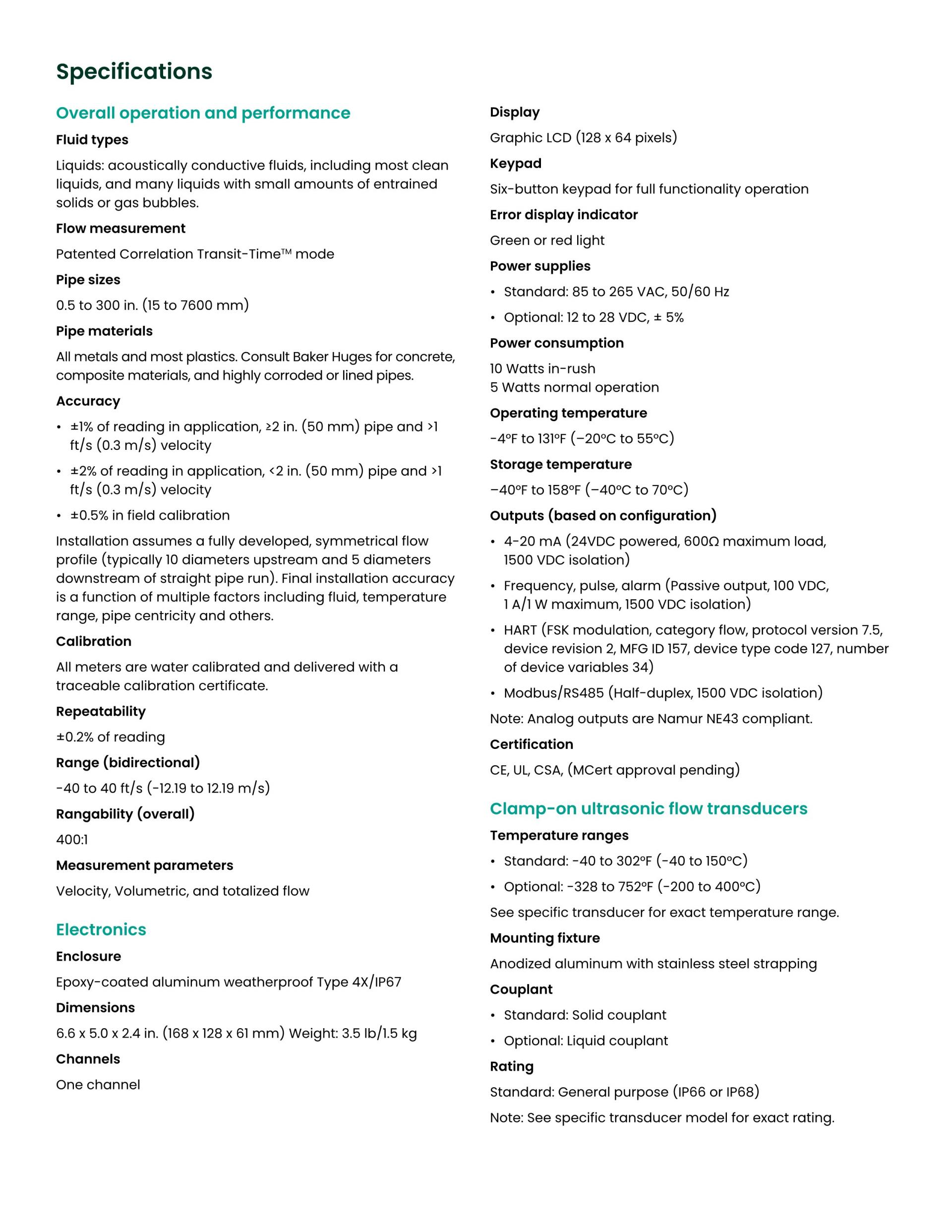

- 사양
- 유속범위 :-12.2 to 12.2 m/s(-40 to 40 ft/s)
- 정확도 (Velocity) ±1% :2inch 이하 ±2% :2inch 이상
- 교정 시 ±0.5%
- 어플리케이션
- 식수
- 폐수
- 하수
- 방류수
- 처리수
- 냉난방수
- 관개용수
- 기타 산업용 액체
